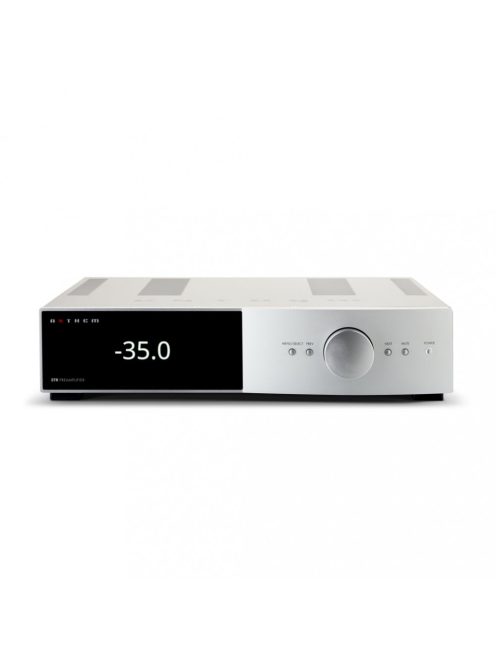

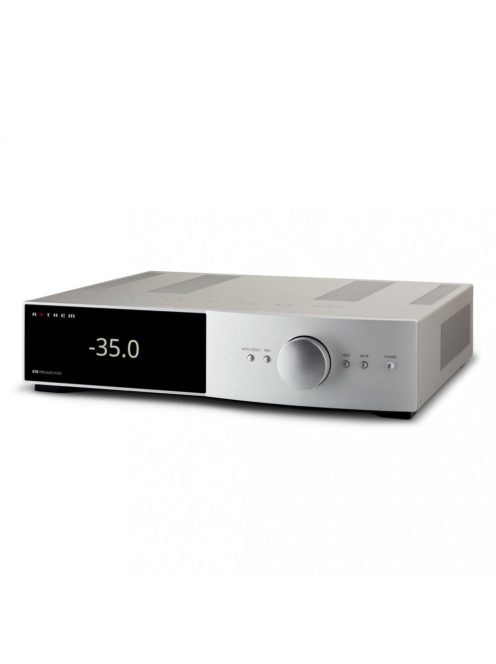

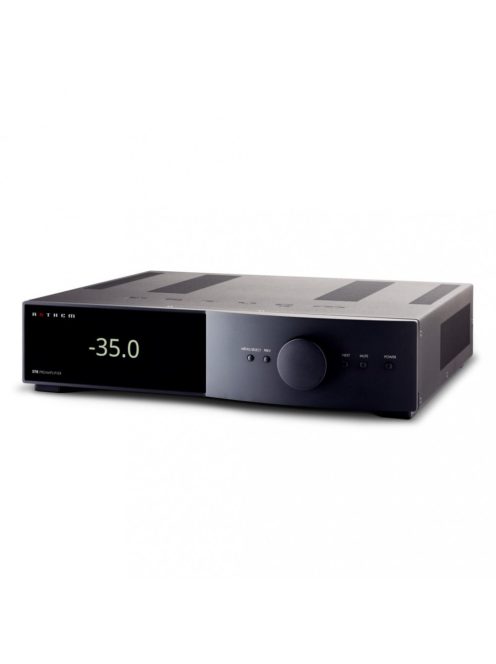

Anthem STR Pre High-end sztereó előerősítő

A forradalmi STR Pre előerősítő egy teljesen új platformot képvisel. Több irányítási lehetőség, nagyobb finomság, több adatátviteli opció és egyszerű kezelhetőség.

Phono Preamplifer
Input Impedance: 100Ω(MC),47kΩ||270pF(MM)
RIAA Response(20Hz-20kHz): ±0.1dB
Gain(1kHz-volume set to0dB)61dB(MC),41dB(MM)
DSP Mode:
Maximum Input(at 1kHz for <0.01% THD 20Hz-20kHz): 3.6mV(MC),38mV(MM)
THD+N(at 1kHz 20Hz-20kHz BW,2Vrms output): <0.015%(MC),<0.003%(MM)
THD(at 1kHz 20Hz-20kHz BW,2Vrmsoutput): 0.001%(MC),0.001%(MM)
SNR(IEC-A, 2Vrmsoutput): 86dB(MC),103dB(MM)
Direct Mode:
Maximum Input Direct Mode (at 1 kHz for <0.01% THD 20 Hz - 20 kHz): 11.8 mV (MC), 129 mV (MM)
THD+N(at 1kHz 20Hz-20kHz BW,2Vrmsoutput): <0.008%(MC),<0.002%(MM)
THD(at 1kHz 20Hz-20kHz BW,2Vrmsoutput): 0.001%(MC),0.001%(MM)
SNR(IEC-A,2Vrmsoutput): 90dB(MC),110dB(MM)
Preamplier
Frequency Response:
digital-in,192kHz: 10Hz-50kHz(+0,-0.5dB)
digital-in,96kHz: 10Hz-45kHz(+0,-0.5dB)
digital-in,44.1kHz: 10Hz-20kHz(±0dB)
analog-in,DSPmode: 10Hz-40kHz(+0.00,-0.20dB)
analog-in,directmode: 10Hz-80kHz(+0.00,-0.10dB)
THD+N (20 Hz - 20 kHz BW, 2 Vrms output)
DSPmode: 0.0006% Digitalin, 0.0017% Analogin
Analog Direct Mode: 0.0016%
SNR (at 1 kHz, IEC-A, 2 Vrms output)
DSPmode 113dB(digital-in),108dB(analog-in)
AnalogDirectMode: 120dB
Maximum Output (<0.1% THD)
RCA connectors (direct and DSPmodes): 3.3Vrms XLR connectors (direct and DSPmodes): 6.6Vrms
XLR Confguration: Pin1:Ground,Pin2:Normal,Pin3:Inverted Power Requirement: This product operates from a single phase AC power source that supplies between 108V and 264V at a frequency of 50 or 60 Hz.
Power Consumption
Standby:0.38W(120V),0.45W(240V)
Standby + Network: 1.1W(120V),1.2W(240V)
Typical Use: 10W
Dimensions
Height 3-8/9”(9.93cm), Width 17”(43.2cm), Depth(not including powercord) 14-5/6”(37.69cm)
Weight(unpacked) 16.8lb(7.6kg)
